ANIMA

Degradation mechanisms of non-PGM catalysts for oxygen reduction reaction in acidic media

A possible path to solve the economic and geological constraints associated with the use of Pt consists in developing non-precious metals catalysts (NPMCs). Transition metal oxides, nitrides and/or carbides,transition metal chalcogenides, nanostructured carbon materials, nitrogen-, sulphur-, boron-, phosphorous-doped carbon materials, and transition metal-nitrogen-carbon catalysts have proven highly active for the ORR in acid and alkaline electrolyte. Among NPMCs, the most mature sub-class of materials is prepared via the pyrolysis of metal atoms (Fe or Co), nitrogen (N) and carbon (C) precursors. Their initial ORR activity strongly depends on their physical and chemical structure, namely the nature and coordination of the metal centres, metal content, redox potential, basicity of N-containing groups and pore size distribution in the carbon phase.

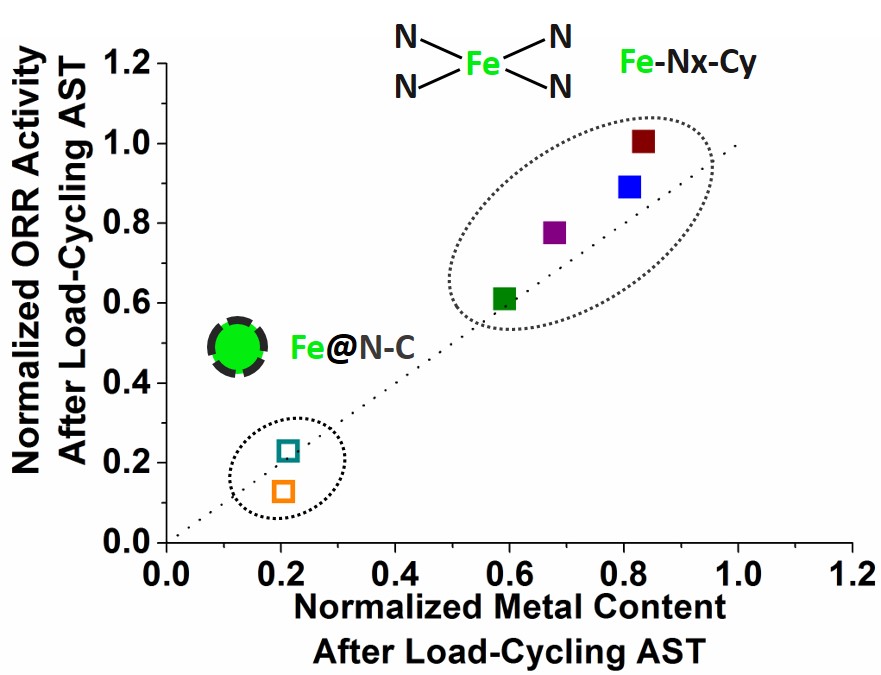

The ORR performance of Metal-N-C catalysts often decreases during ageing in acidic medium both in rotating-disk electrode (RDE) and membrane|electrode assembly set-ups, but the underlying degradation mechanisms remain under-investigated. To gain some insights into the underlying degradation mechanism, we use Metal-N-C catalysts prepared in the group of Frédéric Jaouen in ICGM, differing from each other by the nature of the metal (Fe or Co), the metal content and the heating mode applied during pyrolysis that we characterize before after ageing in conditions simulating PEMFC cathode operating conditions (80°C, load-cycling or start-up/shutdown protocol, 10 k cycles). By combining the information derived from X-ray absorption, Raman and energy-dispersive X-ray spectroscopies and electrochemistry, we conclude that demetallation of the catalytic centres and corrosion of the carbon matrix are one of the reasons of ORR activity decay during load-cycling and start-up/shutdown cycling under Ar-atmosphere, respectively. To know more on this.
